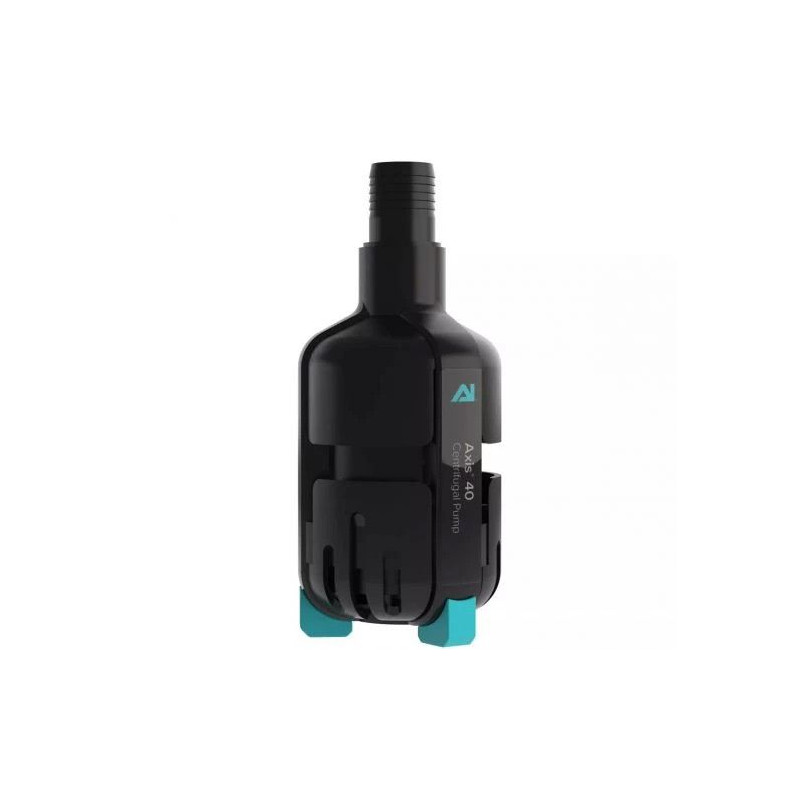

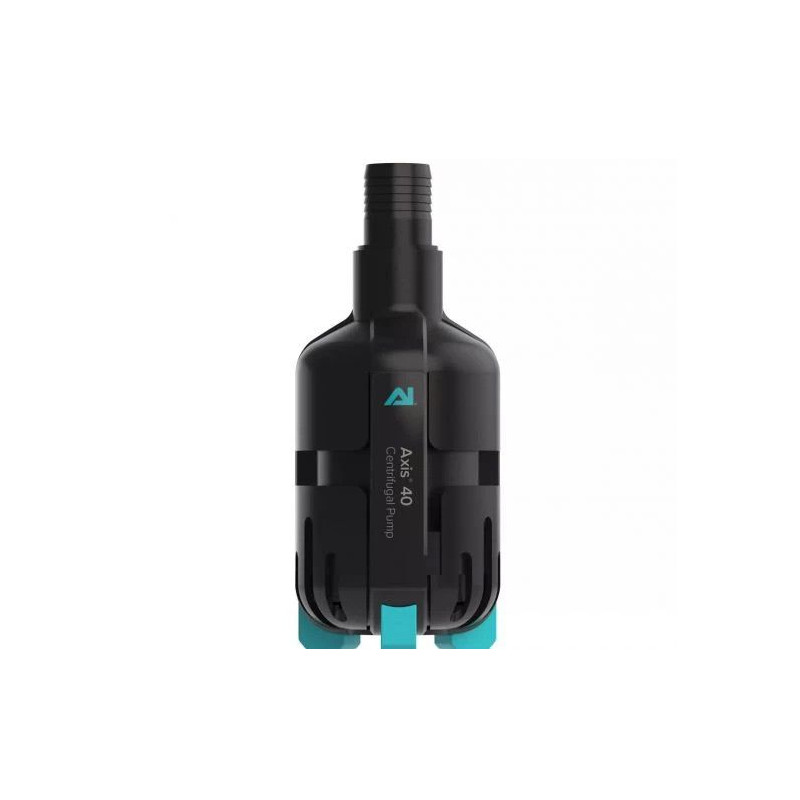

Aqua Illumination Axis® 40 – High-Performance Centrifugal Pump for Aquariums
Take your aquarium control and efficiency to the next level with the Aqua Illumination Axis® 40, a powerful and ultra-quiet centrifugal pump designed to deliver advanced features traditionally found only in larger and more expensive pumps. With full control, wireless smart device programming, silent DC motor operation, and output calibration, the Axis® 40 ensures precise and reliable performance for both marine and freshwater systems.
Thanks to its intelligent functionality, the Axis® 40 enables integrated system management, making feeding, maintenance, and aquarium safety simpler and more effective.
Product Highlights
Coordinated Feed and Maintenance Modes
Turn all your AI pumps on or off using a control button on a single pump, simplifying feeding and maintenance routines.
Back-Siphon Prevention
When calibration is set, instead of powering off, the pump continues to run without producing flow, preventing siphoning and avoiding air bubbles when scheduled operation resumes.
Integrated Smart Control
Compatible with the myAI® and Mobius apps for iOS and Android, allowing you to easily set up and program your AI equipment. It can also be integrated with Neptune Fusion via Apex with MXM module for advanced system control.
Included Pump Modes
- Schedule: Create a custom program with changing flow over time.
- Feed: Temporarily reduces flow to prevent food from being cycled into the overflow.
- Calibrate: Calibrate your pump to your aquarium by setting maximum, minimum, and neutral flow levels.

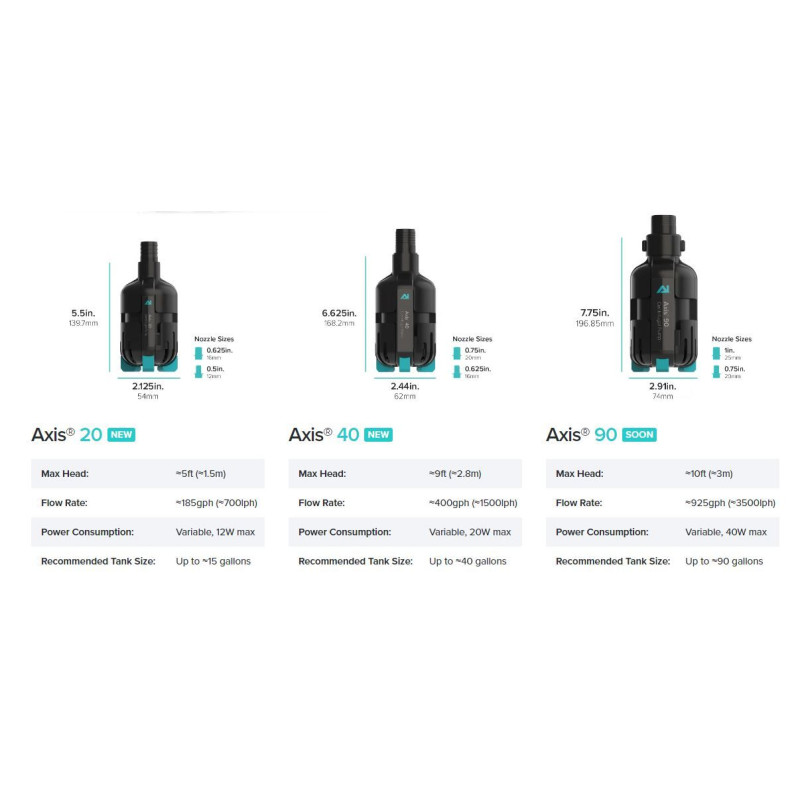

Dimensions
- Width: 62 mm
- Height: 168.2 mm
Specifications
- Maximum Head: 9 ft (2.8 m)
- Flow Rate: 400 GPH (1500 LPH)
- Recommended Tank Size: Up to 40 gallons (approx. 150 liters)
- Power Consumption: Variable, up to 20W max
- Input: 100–240VAC, 50–60Hz, 1A
- Barbed Output Nozzle Sizes: Small: 16 mm | Large: 20 mm
What’s in the Box
- AI Axis® 40 Pump with Integrated Driver
- Power Adapter with Universal Plug
- Adapter Set
- Quick Start Guide
