GHL Doser 2.2 EXT

⦿ ⦾ ⦾ ⦾ ⦾

More info

Description

Not a stand-alone device

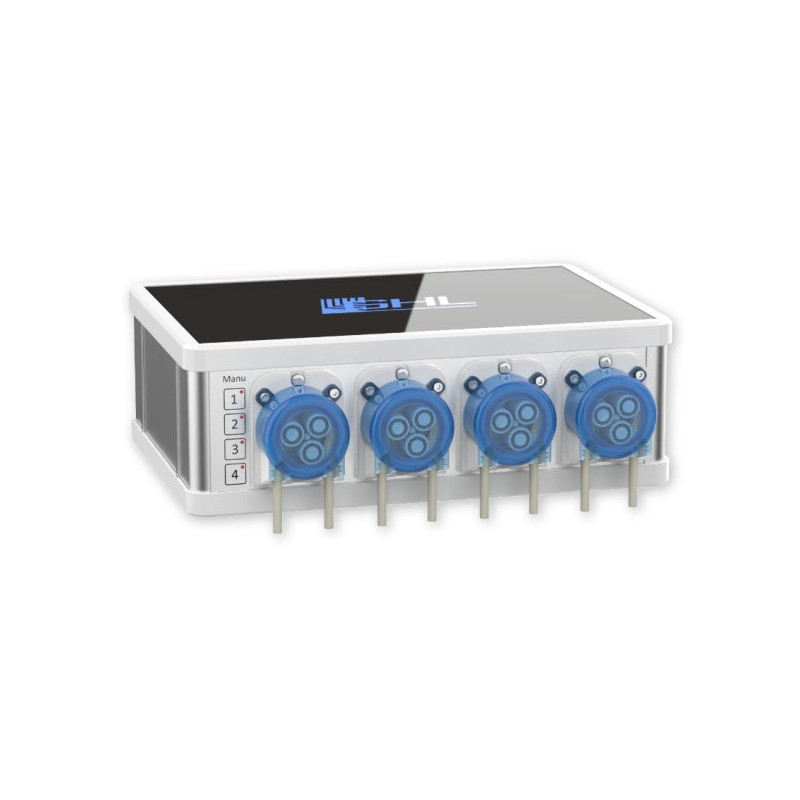

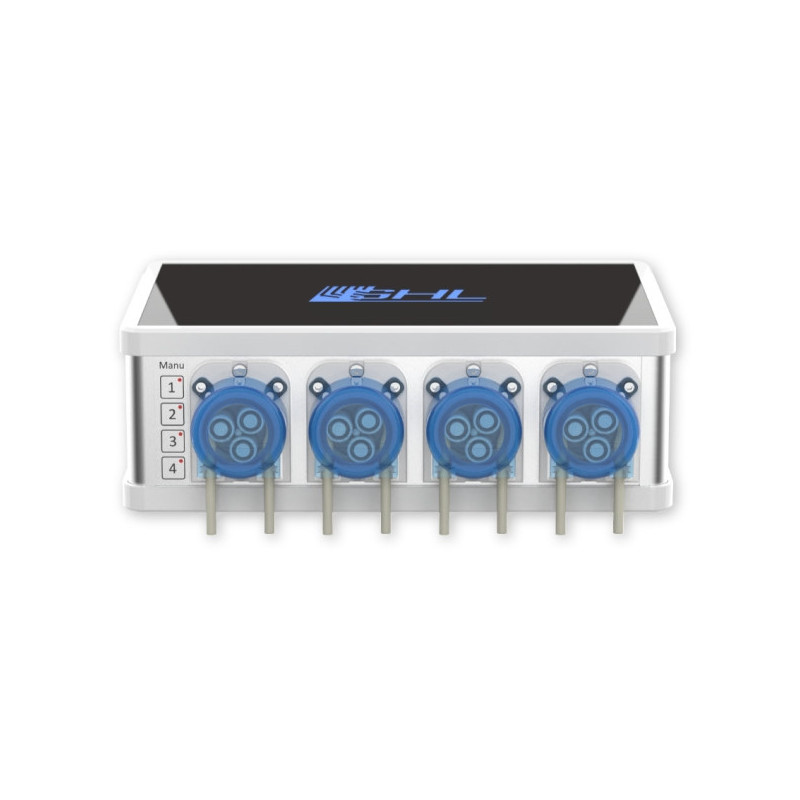

The GHL Doser 2.1 Slave needs to be controlled via a ProfiLux Controller or a GHL Doser 2.1 Stand Alone. Control via a GHL Doser 2.2 Stand Alone or Maxi Stand Alone is also possible.
Its 24 V stepper motors allow precise dosing. The connection can be made via WiFi or USB.

The system is expandable to a total of 16 pumps.

Stand Alone + 3 Slave Doser
ProfiLux Controller + 4 Slave Doser

The ProfiLux Aquatic Bus provides reliable and interference-free data transfer, even over long distances up to 100 m (300 ft.).

Technical specifications:

Color: Black or white
Dimensions: 220 x 150 x 75 mm (without pumps)

Scope of Delivery:
Dosing pump unit Slave (black or white), power supply unit

Features

Milliliter precision and automated dispensing of liquids such as

Fertilizers
Trace Elements
Balling Salts
Lime Water
Liquid Feed
Integrated evaporated water refill (Auto Top–Off)
Water exchange of small water volumes

Together with a ProfiLux Contoller or a GHL Doser 2.1 Stand Alone expandable to 16 pumps respectively metering channels
Stainless steel motor shafts (also suitable for the dosage of Iodine)
Chemical resistant tubing
Manual operation of each individual pump is possible
Pumps can be retrofitted
Individual parts can be replaced (tubes, pump head, motor)
24V stepper motors allow micro doses of 0.1 mL

Up to 150 doses per day

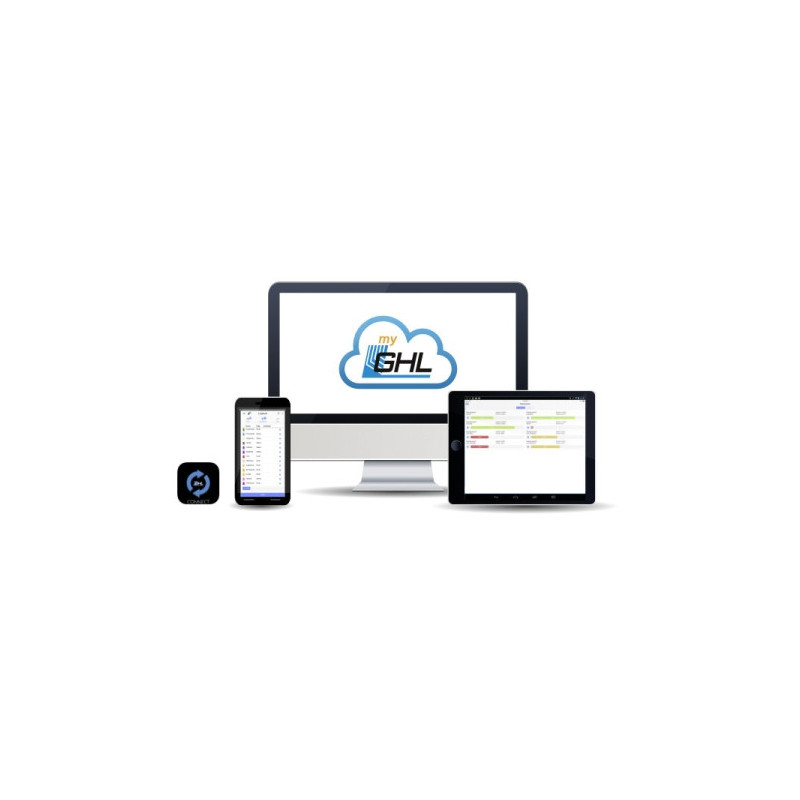

Easily chose dosing times via, APP GHL Connect or software (GHL Control Center).
Automatically: Up to 150 individual doses per day automatically distributed
Individually: Up to 8 doses per day individually set
Each pump can be set separately
Conveying capacity and dosing:
8-45 mL / minute (precisely adjustable to 0.1 mL)
Level indicator

Alarm function
Large LED status indicator
Status LED for pumps

Professional CAN Bus System ensures reliable and interference-free networking of all network devices.

The LED–backlit GHL Logo in the housing cover serves as a status indicator. Various colors show you at a glance, the condition of your system.

Each pump can be operated manually via the push buttons on the front panel. This allows you to quickly post-dosing, deflating the tube vent or suctioning liquids.

Ample accessories available.

Maintenance & wear parts

Doser 2.1 pumps are largely maintenance-free. For optimal performance, we recommend occasionally cleaning and removing dust and other impurities from the inside of the pumps. The pumps must never be lubricated in any way!

Tubes, pumps and motors are wear parts, the life time depends on the use frequency, flow quantity and environmental conditions. When malfunctions (e.g. insufficient flow, losing prime, leakage, increased operation noise) or mechanical damages occur the wear parts must be replaced. Due to the maintenance-friendly design all wear parts can be replaced easily, all wear parts are available as accessories.

We recommend you to read these articles in our Knowledge Base to learn more about this product:

https://www.aquariumcomputer.com/kbtopic/ghl-doser/
