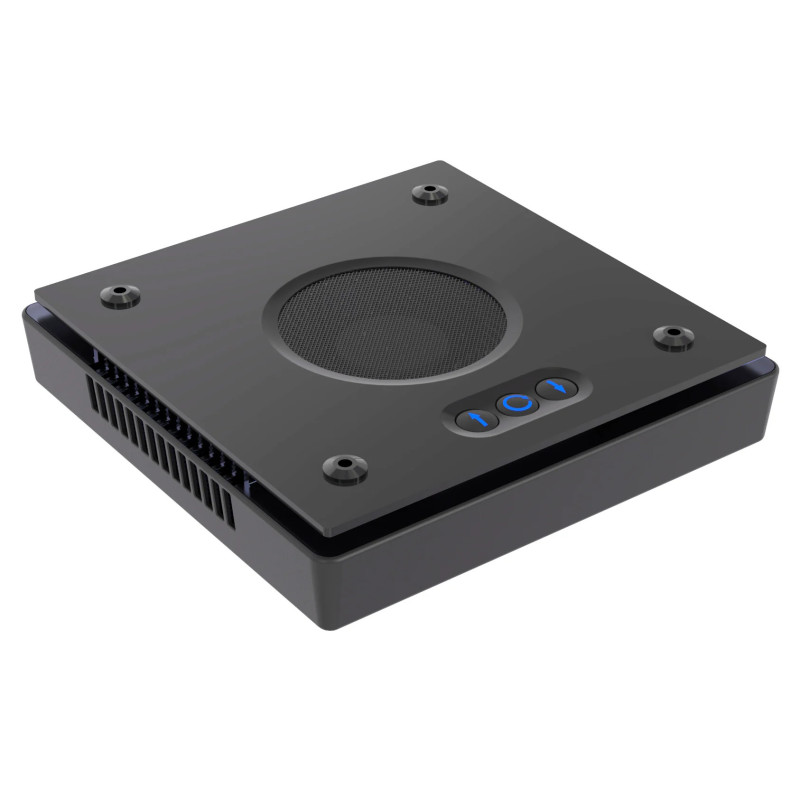

Ecotech Marine Radion XR15 G6 PRO
The Radion XR15 G6 PRO is a top-tier LED lighting system designed for reef aquariums. It offers advanced LED technology and a full-spectrum lighting approach, ideal for optimal coral growth and health. This lighting system is an excellent choice for professional and home aquariums, delivering exceptional performance and vibrant color reproduction.
Main Features
- Full-Spectrum LED: Provides a comprehensive spectrum for coral health and growth.
- CoralLab AB+ Spectrum: Proven spectrum for coral growth and color vibrancy.
- High PAR Levels: Provides the necessary light intensity for different types of corals.
- Uniform Light Distribution: Ensures even coverage across the aquarium.
- Higher Light Output: Up to 35% more light compared to previous generations.
- Impressive Caustics: Creates stunning underwater light patterns.
- 10 Channels Control: Allows precise customization of light settings.
- Wireless Control via Mobius: Facilitates adjustment and customization without the need for additional equipment.
Technical Specifications
Dimensions
- Length: 7 in (18 cm)
- Width: 7 in (18 cm)
- Height: 1.5 in (3.9 cm)
- Weight: 2.4 lbs (1080 g)
Power Specifications
- Power consumption: 95 W
- Universal input range: 100-240 VAC, 50/60 Hz
- Peak current: 1.3 A

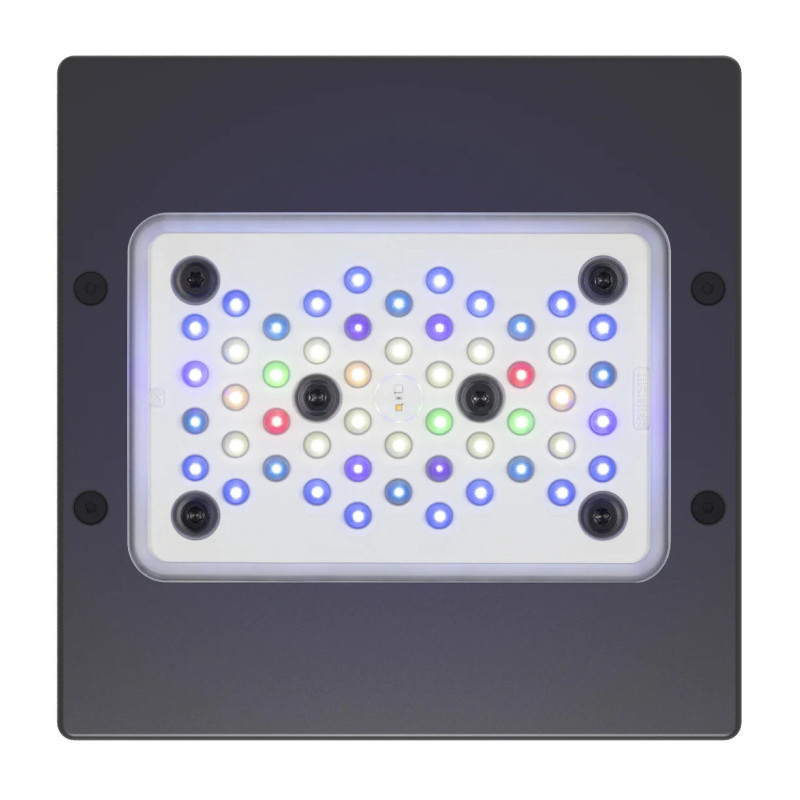

LEDs and Colors
- 8x Cool White
- 16x Royal Blue
- 8x Blue
- 2x Red
- 3x Green
- 2x 395 nm
- 1x 405 nm
- 2x 415 nm
- 4x 430 nm
- 4x Warm White
- 1x Moonlight
Anatomy of the G6 Spectrum
- 395 nm: Unlocks additional fluorescence in fish and corals.
- 400-450 nm: Rebalancing the LED cluster with more blue and deep blue increases fluorescence, color reproduction, and provides a new level of tuning in the blue spectrum between crisp and actinic.
- 460-580 nm: Reduction in mid-range spectral output maintains color expression in pigmentation while allowing more power to be used in a more photosynthetically useful and aesthetically valuable output.
- 665 nm: Appropriate use of long wavelength diodes provides useful light output for coral photosynthesis as well as visual color balance.
ASTOUNDING SPREAD
HEI2 Optical System
The Radion XR15 G6 PRO increases output from 110.5 degrees in the G5 to 126.3 degrees. This improvement was achieved through a change in the primary LED optics, which then integrates with the existing HEI (Hemispherically Edge Illuminating) secondary lens geometry.
HEI2 Optics
Hemispherical edge illumination
Radion is a winner in the cost versus production equation. The HEI2 optical system offers 126.3 degrees of output. The result is incredibly uniform PAR across nearly 4 feet of coverage area, making it the highest average output Radion and perhaps the most efficient aquarium light ever made.
