Radion Gen 6 Overview
Ecotech Marine Radion
Ecotech Marine Radion lights are known for their high-quality LED technology and exceptional performance in aquarium settings. Radion lights are frequently chosen for their efficiency and proven results in growing vibrant corals in both professional and home aquariums.
Superior Performance
- Enhanced LED Blue Spectrum: Optimized for coral growth and health.
- Proven CoralLab AB+ Spectrum: Ensures the ideal light balance for corals.
- Improved PAR Levels: Provides the necessary light intensity for various coral types.
- More Uniform Light Distribution: Ensures even coverage across the aquarium.
- 35% Increased Light Output: Maximizes the overall light intensity for healthier corals.
- Beautiful Caustics: Creates stunning underwater light patterns.
- Smooth Color Blending: Achieves a seamless spectrum transition.
- 10 Control Channels: Allows for precise customization of light settings.
- Wireless Control via Mobius App: Eliminates the need for additional equipment.
Next-Level Color
The Gen 6 excels in providing full-spectrum lighting with a focus on blue and high-output LED channels for superior coral growth and color reproduction. This lighting system combines speed of growth, fluorescence intensity, and nuanced color reproduction to achieve exceptional results.
Beyond Peak PAR
The Gen 6 series offers greater power and coverage per fixture, delivering a broad, uniform light distribution with balanced intensity. The redesigned cluster and HEI Optics reduce PAR hotspots by 30% and increase total output by 35%, offering more usable light across a wider area.
Advanced Heat Management
The Radion Gen 6 features a sleek, compact design with improved thermal management. A redesigned fan and heat sink enhance cooling efficiency, allowing for quieter operation and extended component life.
Moonlight Setting
The Gen 6 includes dedicated, low-output moonlight LEDs, independently controllable, to create a natural nighttime environment for your aquarium.
Mobius Control
With more color channels and Mobius, programming the Gen 6 is easier and quicker. The Mobius app offers near-instant setup and programming from iOS or Android devices. Future updates will enable external Wi-Fi control.
Technical Specifications
Dimensions
- Length: 7 in (18 cm)
- Width: 7 in (18 cm)
- Height: 1.5 in (3.9 cm)
- Weight: 3.5 lbs (1587 g)
Power Specifications
- Power Consumption: 95 W
- Universal Input Range: 100-240 VAC, 50/60 Hz
- Peak Current: 1.3 A
LEDs and Colors
- 4x Cool White
- 16x Royal Blue
- 16x Blue
- 1x Red
- 2x 395 nm
- 1x 405 nm
- 2x 415 nm
- 6x 430 nm
- 2x Warm White
- 1x Moonlight

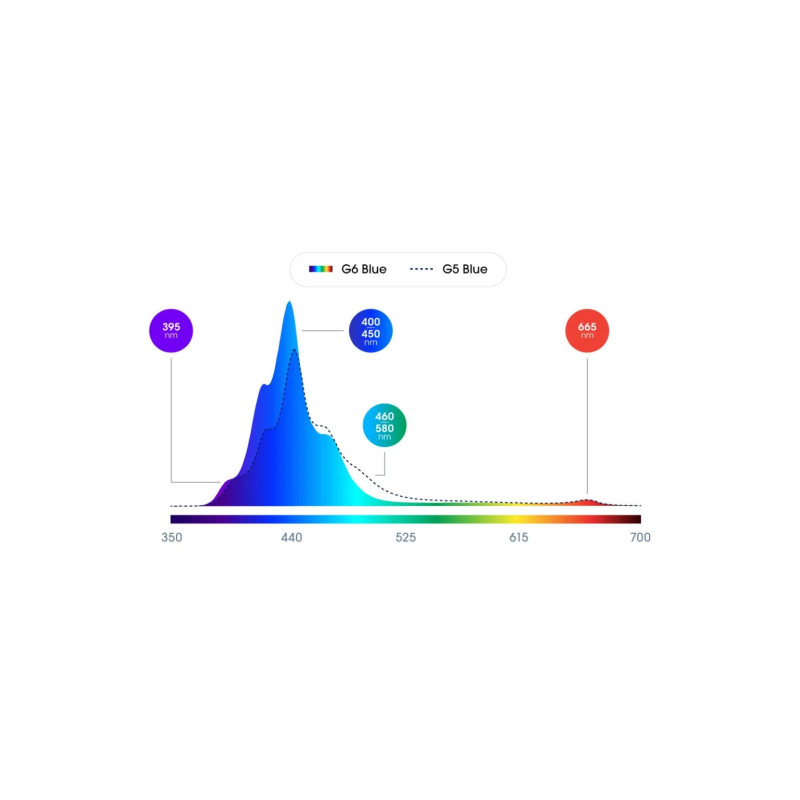

Anatomy of the Gen 6 Spectrum
- 395 nm: Unlocks additional fluorescence in fish and corals.
- 400-450 nm: Rebalancing the cluster with more blue and deep blue increases fluorescence, color reproduction, and provides a new level of tuning in the blue spectrum between crisp and actinic.
- 460-580 nm: The reduction in mid-range spectral output maintains color expression in pigmentation while allowing more power to be utilized in a more photosynthetically useful and aesthetically valuable output.
- 665 nm: The appropriate use of long wavelength diodes provides useful light output for coral photosynthesis as well as visual color balance.
ASTOUNDING SPREAD
HEI2 Optical System
The Radion G6 increases output from an impressive 110.5 degrees in the G5 to an astounding 126.3 degrees. This improvement was achieved through a change in the primary LED optics, which then integrates with the existing HEI (Hemispherically Edge Illuminating) secondary lens geometry.
HEI2 Optics
Hemispherical edge illumination
Radion is a winner in the cost versus output equation. The HEI2 optical system offers 126.3 degrees of output. The result is incredibly uniform PAR across nearly 4 feet of coverage area, making it the highest average output Radion and perhaps the most efficient aquarium light ever made.
